제품 상세 정보:
결제 및 배송 조건:
|
| 깃봉 유형: | APC | 연결기 typ: | SC |
|---|---|---|---|
| 자료 전송: | CATV | 광섬유 센서: | 단일 모드 |
| APC 끝마무리: | APC 끝마무리 | 안전 & 보호: | 파이버 부분과 부속물 |
| 원거리 통신: | 전원 공급기 & 분배 | 깃봉: | 세라믹 이음관 |
| 사용 방법: | 일직선 / 내장형 / 핫 멜팅 | 타입: | 묻힌 유형 |
| 공항: | 센즈헨 |

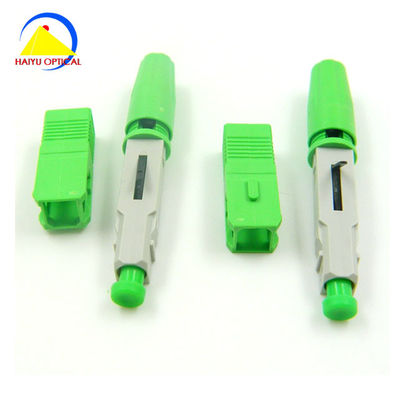

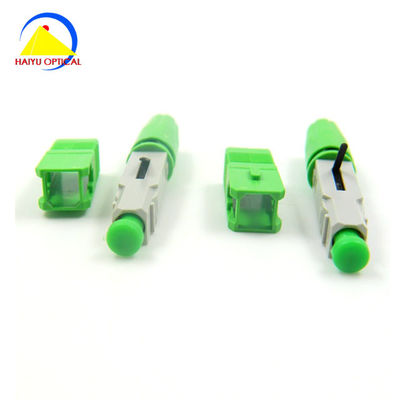

high quality fiber optic SC/APC embedded type fast assembly connector for fibre-optic link
The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.
Characteristics:
Good performance and High success rate.
Easiness in installation with average splicing time of 15 sec
Special tool is simple and convenient to use.
Reusable and repeat orperation times are up to 100.
Integrated protection of the casing to prevent the connector form impact
On line tension is up to 20N to protect the connector from the draging
The maxmum tension is up to 100N. It’s the most safety connector
Application:
FTTX/FTTH fiber to the home
Local area network and smart grid
Mining and Oil
Security equipment
Optical Characteristics:
| Items | G.652 | G.657A | super soft fiber | |
| Insert loss | @1310 nm | / | ≤ 0.3dB | ≤ 0.25 dB |
| @1550 nm | / | ≤ 0.35 dB | ≤ 0.3 dB | |
| Return loss | @1310 nm | / | ≤ -40 dB | ≤ -45 dB |
| @1550 nm | / | ≤ -40 dB | ≤ -45 dB |
Environment Parameters
| Test Item | Change IL | Change RL | Test condition |
| Mechanical life | ≤ 0.2 dB | ≤ 5 dB | 500 (times)300/100010D/20D |
| On line tension | ≤ 0.2 dB | ≤ 5 dB | 20N300/100010D/20D |
| Impation | ≤ 0.2 dB | ≤ 5 dB | 4m high / 3 axis/ 3times300/100010D/20D |
| High temperature storage | ≤ 0.2 dB | ≤ 5 dB | 80C / 96(hours)300/100010D/20D |
| Low temperature storage | ≤ 0.2 dB | ≤ 5 dB | -40C / 96(hours) |
| Temperature cycling | ≤ 0.2 dB | ≤ 5 dB | -40C – 75C / 96(hours) |
Storage/Operating Temperature: -40°C to +70°C
