제품 상세 정보:
결제 및 배송 조건:
|
| 삽입 손실: | UPC<0.2dB, APC<0.3dB | 적용 가능한 케이블: | 3.1 Ｘ 2.0 밀리미터 드롭 케이블 |
|---|---|---|---|
| 끝마무리: | APC, UPC | 이름: | 플라스틱 빠른 연결기 |
| 재료: | 플라스틱 또는 강철 | 애플리케이션: | LAN,PON&Optical CATV인 FTTH |
| 형태: | SM, MM | 증명서: | ISO9000, 로스 |
| 포장: | 비닐 봉투 | 타입: | 광섬유 성분 |
| 공항: | 센즈헨 |

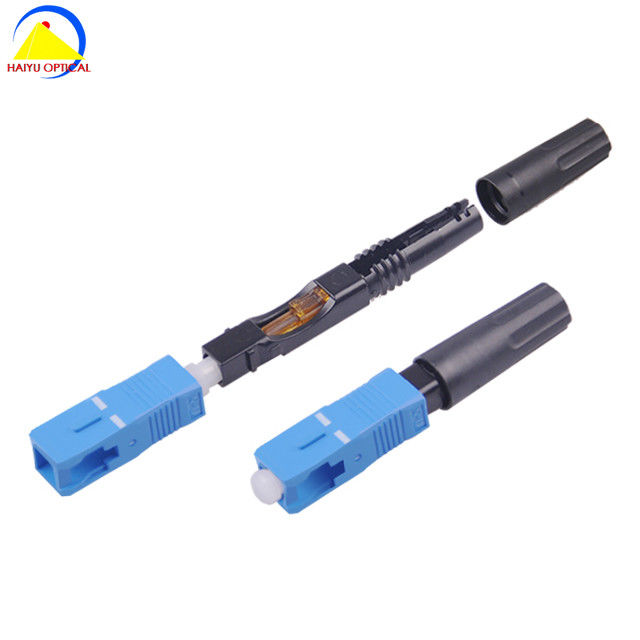

Fiber Optic Fast Connector designed for FTTH
Plastic fast connector:
1. Easy to operate can save time
2. 100% qualified, reduce the maintenance cost.
3. Easy to assembling with mechanical splice and no polishing
4. High stablity ,low insertion loss ,high return loss.
Plastic fast connector parameters:
ITEM | Technical Parameters |
Application | FTTH indoor&outdoor |
Optical fiber diameter | 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insertion loss | ≤ 0.2dB(1310nm & 1550nm) |
Return loss | ≤ -50dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
On-line tensile strength (20 N) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Mechanical durability (500 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | Δ IL ≤ 0.5dB Δ RL ≤ 5dB |
Using temperature | -40~+75°C |
Plastic fast connector application:
· Premise environments
· Connections at the desk for LAN environments
· Patch panels
· Direct equipment termination
· Fiber to the Subscriber (FTTx) applications
· Repair/replacement requirements
· Equipment test leads
