제품 상세 정보:
결제 및 배송 조건:
|
| 타입: | 섬유 어댑터와 연결기 | 섬유의 아니: | 1. |
|---|---|---|---|
| 사용: | FTTH | 상품 이름: | 광섬유 빠른 연결관 |
| 애플리케이션: | FTTH FTTB FTTX 네트워크 | 색: | 청색 |
| 보증: | 1년이요 | 섬유 유형: | 단일 파이버 단일모드 |
| 재료: | 플라스틱 | 중량: | 5g |
| 연결관 유형: | LC | 기능: | FTTH 광 네트워크 접속 |
| 공항: | 센즈헨 |

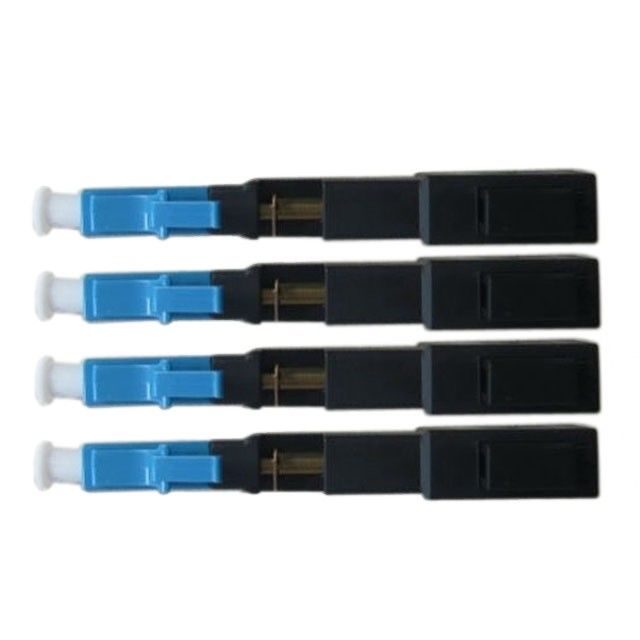

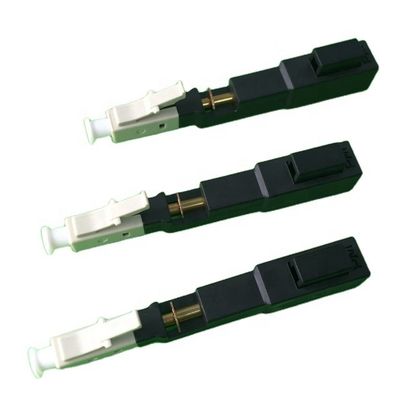

Fiber optic LC/UPC fast connector
The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.
Characteristics:
Good performance and High success rate.
Easiness in installation with average splicing time of 15 sec
Special tool is simple and convenient to use.
Reusable and repeat orperation times are up to 100.
Integrated protection of the casing to prevent the connector form impact
On line tension is up to 20N to protect the connector from the draging
The maxmum tension is up to 100N. It’s the most safety connector
Application:
FTTX/FTTH fiber to the home
Local area network and smart grid
Mining and Oil
Security equipment
Optical Characteristics:
| Items | G.652 | G.657A | super soft fiber | |
| Insert loss | @1310 nm | / | ≤ 0.3dB | ≤ 0.25 dB |
| @1550 nm | / | ≤ 0.35 dB | ≤ 0.3 dB | |
| Return loss | @1310 nm | / | ≤ -40 dB | ≤ -45 dB |
| @1550 nm | / | ≤ -40 dB | ≤ -45 dB |
Environment Parameters
| Test Item | Change IL | Change RL | Test condition |
| Mechanical life | ≤ 0.2 dB | ≤ 5 dB | 500 (times)300/100010D/20D |
| On line tension | ≤ 0.2 dB | ≤ 5 dB | 20N300/100010D/20D |
| Impation | ≤ 0.2 dB | ≤ 5 dB | 4m high / 3 axis/ 3times300/100010D/20D |
| High temperature storage | ≤ 0.2 dB | ≤ 5 dB | 80C / 96(hours)300/100010D/20D |
| Low temperature storage | ≤ 0.2 dB | ≤ 5 dB | -40C / 96(hours) |
| Temperature cycling | ≤ 0.2 dB | ≤ 5 dB | -40C – 75C / 96(hours) |
Storage/Operating Temperature: -40°C to +70°C
Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television
Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China
Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.
OEM & ODM is accepted, any questions welcome to contact us.
